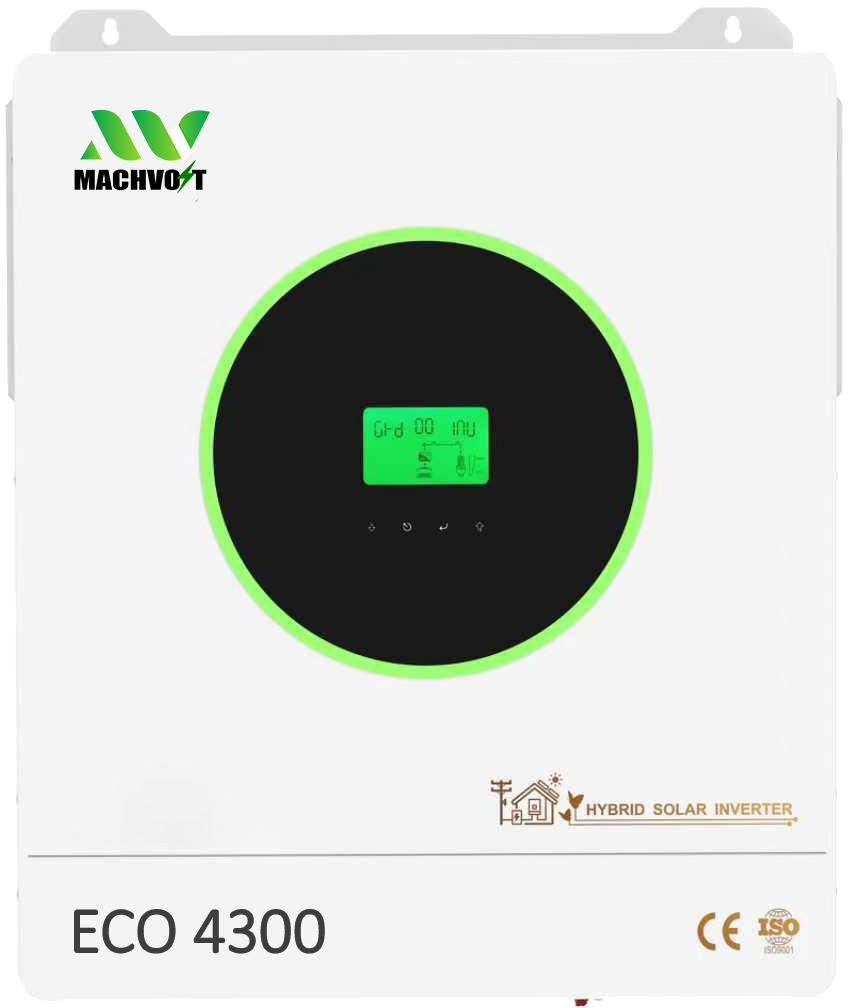

4.3 KW HYBRID EC04300
🌞 4.3KW Pure Sine Wave Hybrid Solar Inverter
Smooth & reliable power output for sensitive appliances.
⚡ Dual Output with Built-in Wi-Fi
Monitor performance anytime, anywhere.
🔋 Battery-less Operation
Runs directly on solar power without batteries.
🔌 Ultra Wide MPPT Range
Efficient power tracking for maximum solar utilization.
🛡️ Extensive Protections
Short circuit, overload & over-temperature protection.
🔋⚡ Smart Battery Charging Design
Optimized charging for longer battery life.
🔄 Built-in Lithium Battery Auto Activation
Automatically activates Li-ion batteries for smooth operation.
🌬️ Built-in Anti-Dust Kit
Designed for durability in harsh conditions.
2 YEARS WARRANTY AND 1 YEAR REPLACEMENT WARRANTY
🌞 ECO 4300 1Փ Hybrid – Technical Specifications
⚡ Power & Output
🔹 Rated Power: 4300W
🔹 Waveform: Pure Sine Wave
🔹 Voltage Regulation: 230Vac ± 2%
🔹 Frequency: 50Hz
🔹 Peak Efficiency: 97%
🔹 Surge Capacity: 2× Rated Power (5s)
🔋 Battery System
🔹 Rated Voltage: 24VDC
🔹 Battery Range: 21 ~ 30VDC
🔹 Battery Type: Lead Acid / Li-ion
🔹 Low Voltage Alarm: 22VDC
🔹 Low Voltage Protection: 21VDC
🔹 Charging Current (AC): 100A
🔹 Charging Current (Solar): 150A
🔹 Max Solar + AC Charge: 150A
☀️ Solar (MPPT)
🔹 Max PV Array Power: 5000W
🔹 Number of MPPTs: 1
🔹 Strings per MPPT: 1
🔹 Input Current (MPPT): 20A
🔹 MPPT Voltage Range: 40VDC ~ 450VDC
🔹 Rated Voltage: 240VDC
🔹 Max DC Voltage: 500VDC
🔌 Load Management
🔹 Dual Load Output: Yes (Adjustable)
🔹 Main Load: 4300W
🔹 Secondary Load: 1290W
🛡️ Protection Features
✅ Anti-Islanding Protection (2s)
✅ Overload Power Protection
✅ Short Circuit Protection
✅ Over-Temperature Protection (>90°C)
📡 Communication & Extras
🔹 Ports: Wi-Fi, GPRS
🔹 RGB Lights: Yes
🔹 Operating Temp: -10°C ~ 50°C
🔹 Dimensions: 375 × 297 × 102 mm
🔹 Net Weight: 6.6 KG
