🌟 Features – 10.2KW Hybrid Solar Inverter
⚡ Pure Sine Wave Power
10.2KW hybrid solar inverter with high efficiency and stable power delivery.
🔆 Dual MPPT & Dual Output
Maximizes solar harvesting while supporting flexible load management.
📡 Dual Communication Ports
Supports Wi-Fi & battery communication for smart monitoring.
🔋 Battery-less Operation
Runs directly on solar power without batteries.
⚡ Lithium Battery Auto Activation
Automatically activates lithium batteries for smooth operation.
🔧 Smart Battery Charging
Optimized design for extended battery life.
🖲️ Touch Button Control
Modern touch interface for user-friendly operation.
🌬️ Anti-Dust Kit
Built-in protection against dust and harsh environments.
🔻 High PV Input Voltage Range
Supports a wide PV input range of 90V ~ 500V DC.
☀️ Powerful MPPT Controller
Equipped with a 160A MPPT solar charge controller for reliable charging.

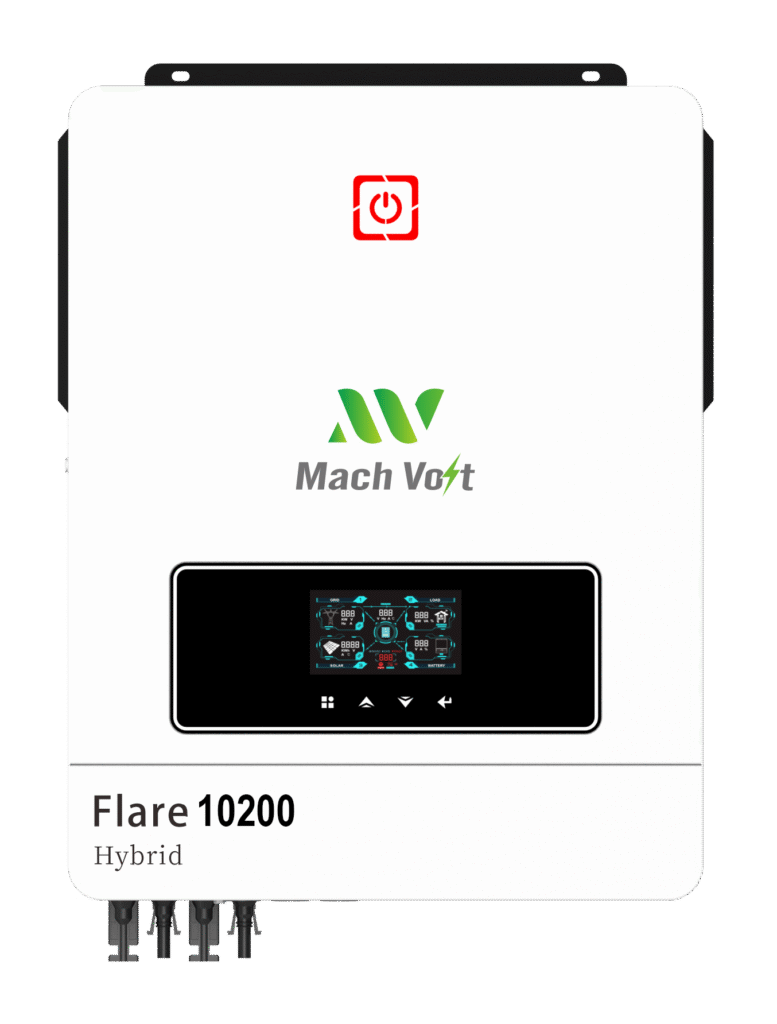

⚙️ Technical Specifications – Flare 10200 1Փ Hybrid
🔋 Rated Output Power
10200W
🌊 Output Voltage Waveform
Pure Sine Wave
⚡ Voltage Regulation
230Vac ± 5%
⏱️ Output Frequency
50Hz
🚀 Peak Efficiency
98%
🛡️ Overload Protection
3s @150%
5s @101%
🔄 Surge Capacity
2 × Rated Power for 5 seconds
🔌 Nominal DC Input Voltage
48VDC
⚡ Cold Start Voltage
46VDC
⚖️ Dual Load Output
Main Load: 10200W
Secondary Load (Adjustable): 7140W
🔧 Utility Charging Mode
Max AC Battery Charge Current: 140A @ 230Vac
Charging Algorithm: 3-Stage
☀️ MPPT Solar Charge Mode
Max PV Array Power: 11,000W
MPPTs: 2
Strings per MPPT: 1
Input Current per MPPT: 18A
MPPT Voltage Range: 90V ~ 450V
Startup / Initial Feeding Voltage: 90V / 120V
Solar Charging Current: 160A
🔋 Nominal / Maximum DC Voltage
360V / 500V
⚡ Max Solar + AC Charge Current
160A
🌡️ Operating Temperature
-10°C ~ 50°C
📏 Dimensions
500 × 390 × 136 mm
⚖️ Net Weight
15 KG
🔋 Compatible Battery Types
Lead Acid, Li-ion
📡 Communication Ports
Wi-Fi, GPRS
🔗 Parallel Operation
Yes
