🌟 Features – 8.2KW Hybrid Solar Inverter
⚡ Pure Sine Wave Power
8.2KW hybrid solar inverter with stable and efficient power output.
──────────────────────────────
🔆 Dual MPPT & Dual Output
Maximizes solar harvesting and supports flexible load management.
📡 Dual Communication Ports
Supports Wi-Fi & battery communication for smarter monitoring.
🔋 Battery-less Operation
Can run directly on solar power without batteries.
──────────────────────────────
⚡ Lithium Battery Auto Activation
Automatically activates lithium batteries for smooth performance.
🔧 Smart Battery Charging
Optimized charging design to extend battery lifespan.
🖲️ Touch Button Control
Modern touch interface for easy operation.
──────────────────────────────
🌬️ Anti-Dust Kit
Built-in kit ensures reliable performance in harsh, dusty environments.
🔻 Wide PV Input Range
Supports 90V ~ 500V DC input voltage for flexible panel configurations.
☀️ High-Capacity MPPT
Built-in 160A MPPT solar charge controller for powerful charging.

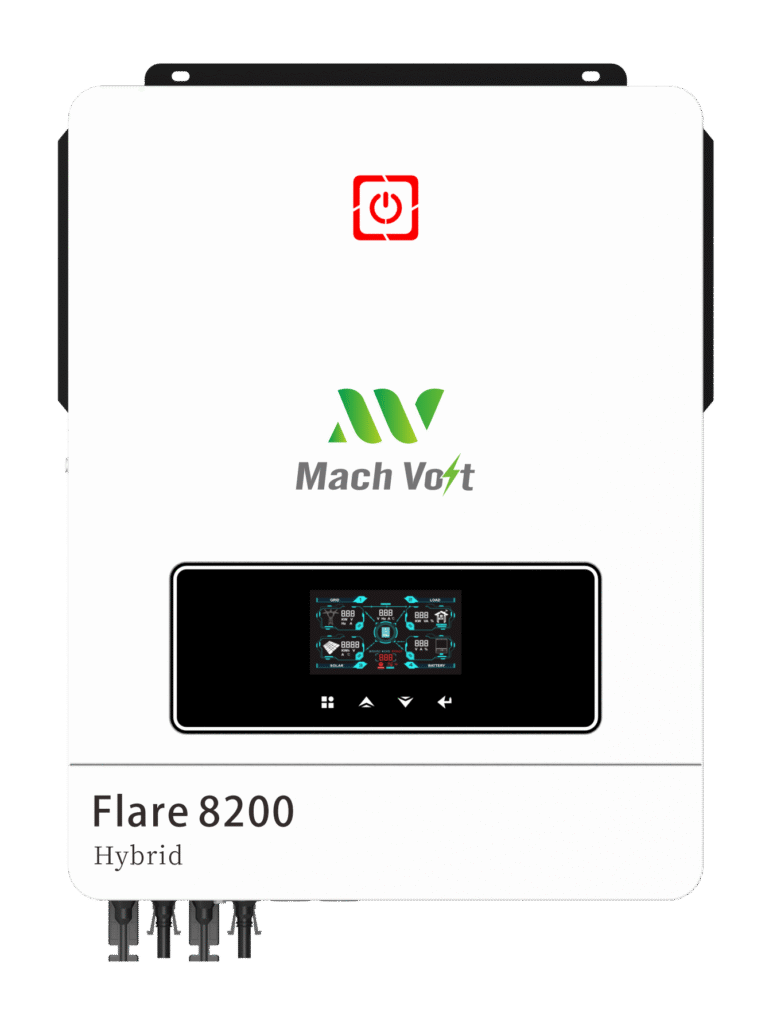

⚙️ Technical Specifications – Flare 8200 1Փ Hybrid
🔋 Rated Output Power: 8200W
🌊 Output Voltage Waveform: Pure Sine Wave
⚡ Voltage Regulation: 230Vac ± 5%
⏱️ Output Frequency: 50Hz
🚀 Peak Efficiency: 98%
🛡️ Overload Protection: 3s @150% / 5s @101%
🔄 Surge Capacity: 2 × Rated Power for 5 seconds
──────────────────────────────
🔌 Nominal DC Input Voltage: 48VDC
⚡ Cold Start Voltage: 46VDC
⚖️ Dual Load Output:
Main Load: 8200W
Secondary Load (Adjustable): 5740W
──────────────────────────────
🔧 Utility Charging Mode:
Max AC Battery Charge Current: 140A @ 230Vac
Charging Algorithm: 3-Stage
──────────────────────────────
☀️ MPPT Solar Charge Mode:
Max PV Array Power: 11,000W
MPPTs: 2
Strings per MPPT: 1
Input Current per MPPT: 18A
MPPT Voltage Range: 90V ~ 450V DC
Startup / Initial Feeding Voltage: 90V / 120V DC
Solar Charging Current: 160A
🔋 Nominal / Maximum DC Voltage: 360V / 500V
⚡ Max Solar + AC Charge Current: 160A
──────────────────────────────
🌡️ Operating Temperature: -10°C ~ 50°C
📏 Dimensions: 500 × 390 × 136 mm
⚖️ Net Weight: 14.5 KG
──────────────────────────────
🔋 Compatible Battery Types: Lead Acid, Li-ion
📡 Communication Ports: Wi-Fi, GPRS
🔗 Parallel Operation: Yes
🌈 RGB Lights: Available for modern display & status indication
